ComfyUI-MachinePaintingNodes

Professional Image Editing & Adjustments, Curves, color grading, mask tools, filters, and advanced utilities for your ComfyUI workflows

A comprehensive node suite for professional level image processing, color correction, frequency separation, film grain, blur tools, inpainting mask management, and advanced workflow enhancement utilities.

---

New Nodes

| Node | Category | Date Added | |------|----------|------------| | Blur Pro | Filters | 2026-03-27 | | Noise Grain Pro | Filters | 2026-03-27 | | Frequency Separate | Filters | 2026-03-27 | | Frequency Combine | Filters | 2026-03-27 | | Inpaint Mask Pro | Mask | 2026-03-27 | | Mask Composite Pro 2X | Mask | 2026-03-28 | | Mask Composite Pro 6X | Mask | 2026-03-28 | | Image <> Mask Switch | Utilities | 2026-03-27 |

---

(All current nodes.)

Installation

ComfyUI Manager (Recommended)

Search for "MachinePaintingNodes" in ComfyUI Manager and install.

Manual Installation

cd ComfyUI/custom_nodes
git clone https://github.com/machinepainting/ComfyUI-MachinePaintingNodes.git

Dependencies

pip install -r requirements.txt

---

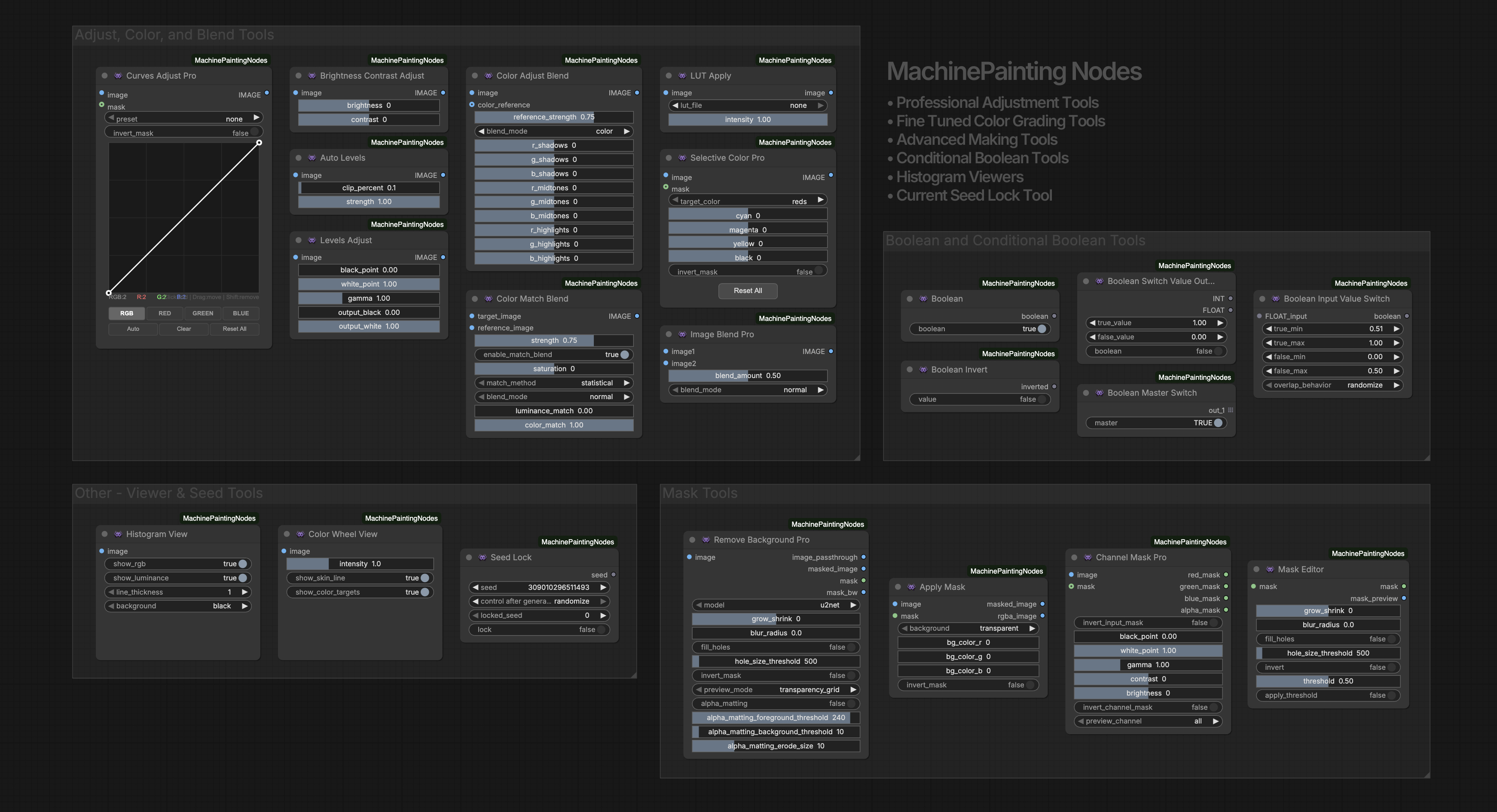

Nodes (40 Total)

Color Adjustment

(example)

| Node | Description | |------|-------------| | Curves Adjust Pro | Interactive Photoshop-style curves with RGB/R/G/B channels, 17 presets, mask support, channel-mask support | | Levels Adjust | Black point, white point, gamma, output levels | | Auto Levels | Automatic levels correction | | Selective Color Pro | CMYK adjustments for specific color ranges and fine tuned color adjustments (reds, yellows, greens, cyans, blues, magentas, whites, neutrals, blacks) | | Brightness Contrast Adjust | Simple brightness and contrast controls with simple slider controls | | Color Match Blend | Match colors from one image to another with multiple methods (statistical, histogram, reinhard), blend modes, and adjustments | | Color Adjust Blend | Color match with blend modes, plus RGB color balance for Shadows, Mid-Range, and Highlights | | LUT Apply | Apply .cube/.3dl LUT files for cinematic color grading (includes 5 bundled LUTs) |

(examples)

Filters

| Node | Description | |------|-------------| | Blur Pro | Professional multi-type blur with 5 modes: Gaussian, Surface (bilateral/edge-preserving), Box, Median, and Motion blur. Per-type dynamic sliders, mask-controlled application, strength blending, optional mask blurring, in-node preview. Large radius optimization for fast processing at high values. | | Noise Grain Pro | Realistic film grain/noise generator with grain size, sharpness, color/mono toggle, saturation control, seed for reproducibility. 6 blend modes: overlay, soft light, hard light, linear light, multiply, screen. Mask support and in-node preview. | | Frequency Separate | Splits an image into high frequency (texture/detail) and low frequency (color/tone) layers using the exact Photoshop Apply Image formula (Scale 2, Offset 128, Subtract). Original image pass-through output for easy chaining. | | Frequency Combine | Recombines high and low frequency layers using Linear Light blend with opacity control. |

Mask and Background

| Node | Description | |------|-------------| | Remove Background Pro | Advanced AI-powered background removal with 8 rembg models, mask editing tools, multiple preview modes | | Mask Editor | Stand alone Mask Tools. Refine masks with grow/shrink/blur/fill | | Apply Mask | Composite image with mask and background options | | Channel Mask Pro | Extract R/G/B/A channels as separate masks with levels/contrast adjustments and input mask support for advanced Channel Masking | | Inpaint Mask Pro | Advanced inpaint mask management node. Combines an inpaint mask with an optional silhouette mask to crop sloppy inpaint regions to clean boundaries. Features: invert toggle, expand/shrink, per-mask blur, mask expand/contract, multi-color overlay preview with independent color and opacity per layer. Outputs: image pass-through, processed mask, B&W mask image, and preview image. | | Mask Composite Pro 2X | Combine 2 masks with per-mask blur, grow/shrink, and opacity. Screen blend for natural mask union. Output selector and invert toggle. | | Mask Composite Pro 6X | Combine up to 6 masks with per-mask blur, grow/shrink, and opacity. Screen blend for natural mask union. Output selector (all or individual 1-6) and invert toggle. |

(examples)

Blending

| Node | Description | |------|-------------| | Image Blend Pro | Blend images with 15 blend modes (normal, overlay, multiply, screen, soft light, hard light, etc.) |

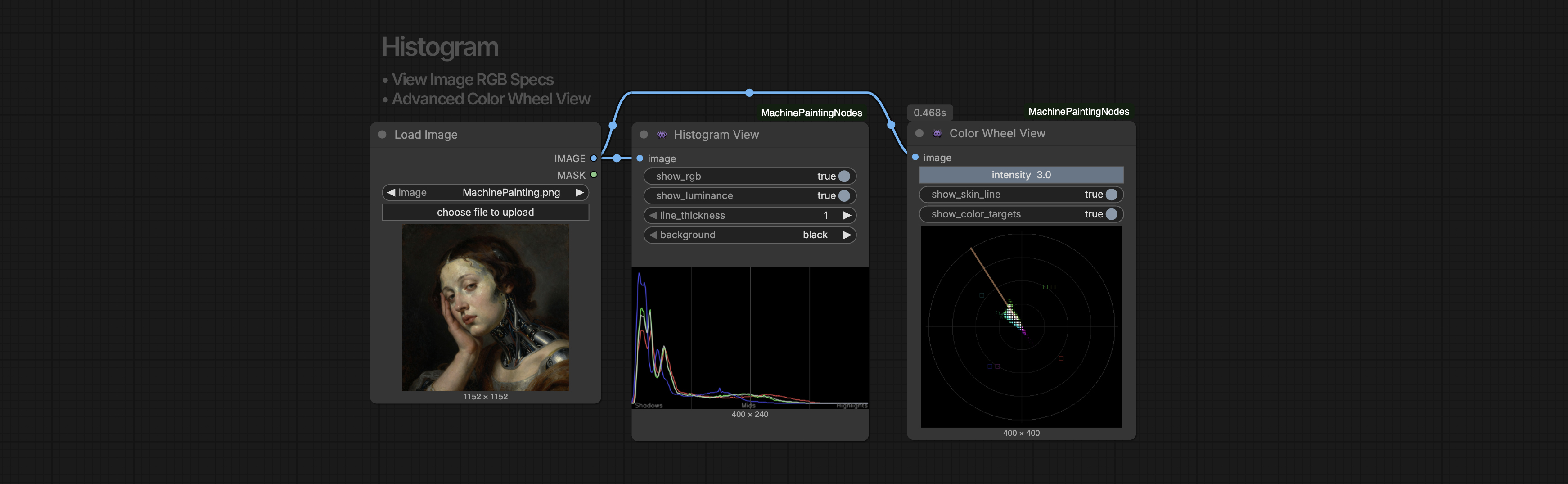

Analysis

| Node | Description | |------|-------------| | Histogram View | Display RGB/luminance histogram in-node for advanced image setting color display | | Color Wheel View | Display vectorscope color distribution in-node for advanced image setting color display |

(example)

Utilities

| Node | Description | |------|-------------| | Image <> Mask Switch | Convert between IMAGE and MASK types with a toggle. Image-to-mask converts to grayscale using Rec. 601 luma. Mask-to-image expands to 3-channel RGB. | | Boolean | Output a true/false value | | Boolean Invert | Flip boolean value (true to false, false to true) for advanced workflow pipeline and settings switching | | Boolean Switch Value Output | Output different values based on boolean for advanced workflow pipeline and settings switching | | Boolean Input Value Switch | Route inputs based on boolean for advanced workflow pipeline and settings switching | | Boolean Master Switch | Control multiple booleans from one switch for controlling multiple switches with one master switch node | | Seed Lock | Lock/unlock seed values with a toggle to lock the current seed value, opposed to the standard where the following run seed value is locked | | Text Notes | Add comments and documentation to your workflow for organization | | Text String | Simple text input node for passing strings to other nodes | | Show Text | Display and pass through text output from other nodes for debugging | | Show Value | Display any value type (float, int, string, bool) in the node for debugging | | Mega Slider Master Value | Master settings (min/max/step) for connected Mega Sliders | | Mega Slider X1 | Single universal slider with optional master input and per-slider property overrides | | Mega Slider X3 | 3 universal sliders with optional master input and per-slider property overrides | | Mega Slider X6 | 6 universal sliders with optional master input and per-slider property overrides | | Mega Slider X12 | 12 universal sliders with optional master input and per-slider property overrides | | Dynamic Value Range | Automatically cycles through a value range on each run (increment/decrement/random) | | Z-Image Empty Latent Image | Empty latent image with Z-Image optimized resolutions from 512x512 to 2048x2048 (landscape, portrait, square) |

(example)

---

Features

Blur Pro

• 5 blur types in one node with dynamic slider UI that shows only relevant controls per type
• Gaussian — General-purpose smoothing (radius)
• Surface Blur — Edge-preserving bilateral filter for retouching (radius + threshold). Smooths skin/textures while keeping edges sharp.
• Box Blur — Fast uniform blur (radius)
• Median — Edge-preserving noise removal, kills salt-and-pepper artifacts (radius)
• Motion Blur — Directional blur for movement effects (angle + radius)
• Large radius optimization: radii above 30 auto-downscale for fast processing
• Mask input controls where blur is applied, optional mask blurring toggle
• Strength slider to blend blurred result with original
• In-node preview

Noise Grain Pro

• Realistic film grain with independent controls for size, sharpness, and color
• Grain size (0.5-10) — Controls particle size by generating noise at reduced resolution
• Sharpness (0-1) — Grain definition from soft/diffused to crisp
• Monochromatic toggle — Mono grain vs color grain
• Saturation — Color intensity for color grain mode
• 6 industry-standard blend modes: overlay, soft light, hard light, linear light, multiply, screen
• Soft Light uses the correct W3C/Photoshop formula
• Seed input for reproducible grain
• Mask support for selective application
• In-node preview

Frequency Separation

• Professional retouching workflow: split image into texture and color/tone layers
• Frequency Separate — Takes original image + a blurred version (from Blur Pro or any blur node), outputs high frequency (neutral gray texture), low frequency (pass-through), and original (pass-through)
• Uses the exact Photoshop Apply Image formula: Scale 2, Offset 128, Subtract
• Frequency Combine — Recombines layers using Linear Light blend with opacity slider
• Opacity controls texture strength: 0 = smooth only, 1 = full reconstruction
• Filter-agnostic: use any blur node upstream (Gaussian for standard, Surface Blur for edge-aware retouching)

Inpaint Mask Pro

• Solves the problem of applying external inpaint masks when the Load Image node doesn't accept mask inputs
• Combines an inpaint mask with a clean silhouette mask to crop sloppy inpaint regions
• Invert toggle for flipping the inpaint mask
• Expand/shrink slider for growing or shrinking the inpaint mask
• Inpaint blur for softening inpaint mask edges
• Mask crop (advanced) with blur and expand/contract controls for the silhouette mask
• Multi-color overlay preview with independent toggle, color, and opacity per layer:
  • Inpaint mask: red, light blue, black, white
  • Crop mask: lime green, purple, black, white
• Outputs: image pass-through, processed mask, B&W mask image, colored preview image

Mask Composite Pro 2X / 6X

• Combine 2 or 6 masks into one unified mask
• Per-mask controls: blur, grow/shrink, opacity
• Screen blend mode for combining — creates natural mask unions where overlapping areas blend smoothly
• Output selector — output all masks combined, or select an individual mask for isolation
• Invert output toggle to flip the final result
• Handles mismatched mask sizes automatically (resizes to match mask_1)
• 2X variant for simple two-mask workflows, 6X for complex compositing

Image <> Mask Switch

• Toggle between image-to-mask and mask-to-image conversion
• Image-to-mask: converts RGB to grayscale using Rec. 601 luma coefficients (0.299R + 0.587G + 0.114B)
• Mask-to-image: expands single-channel mask to 3-channel RGB
• Both outputs always populated for stable downstream connections

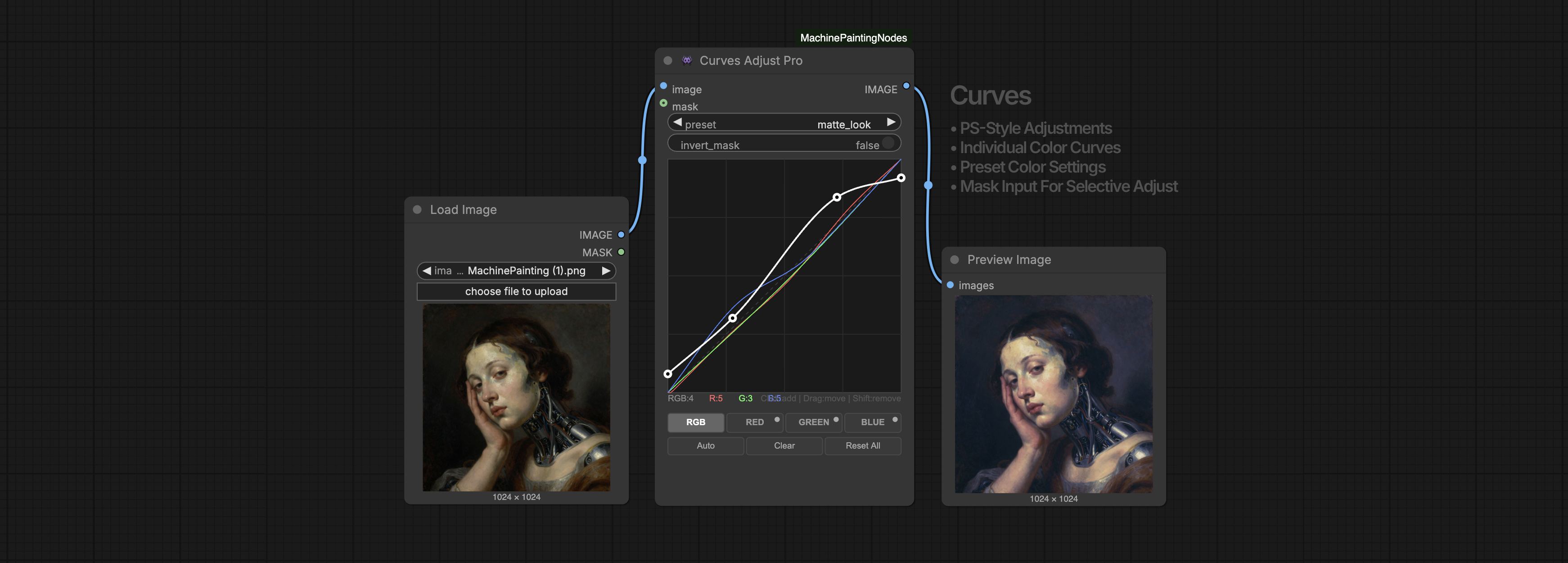

Curves Adjust Pro

• Interactive curve editor with click-to-add, drag-to-move, shift-click-to-remove points
• Separate RGB, Red, Green, Blue channel curve editing
• 17 built-in presets (S-Curve Contrast, Fade, Cross Process, Cinematic, etc.)
• Visual display of all channel curves in RGB mode
• Mask support with invert option
• Spline interpolation for smooth curves

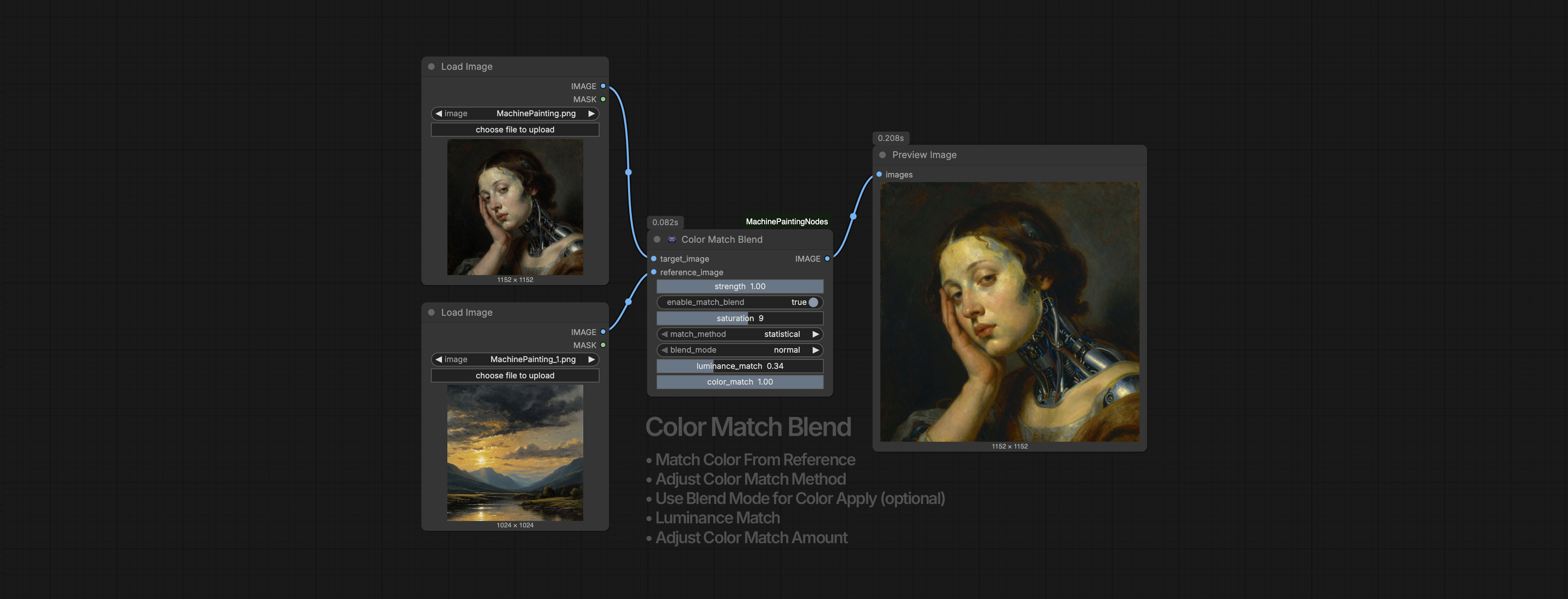

Color Match Blend

• 3 matching methods: statistical, histogram, reinhard
• 10 blend modes: normal, overlay, multiply, screen, soft light, hard light, color, luminosity, darken, lighten
• Separate luminance and color match controls
• Saturation adjustment

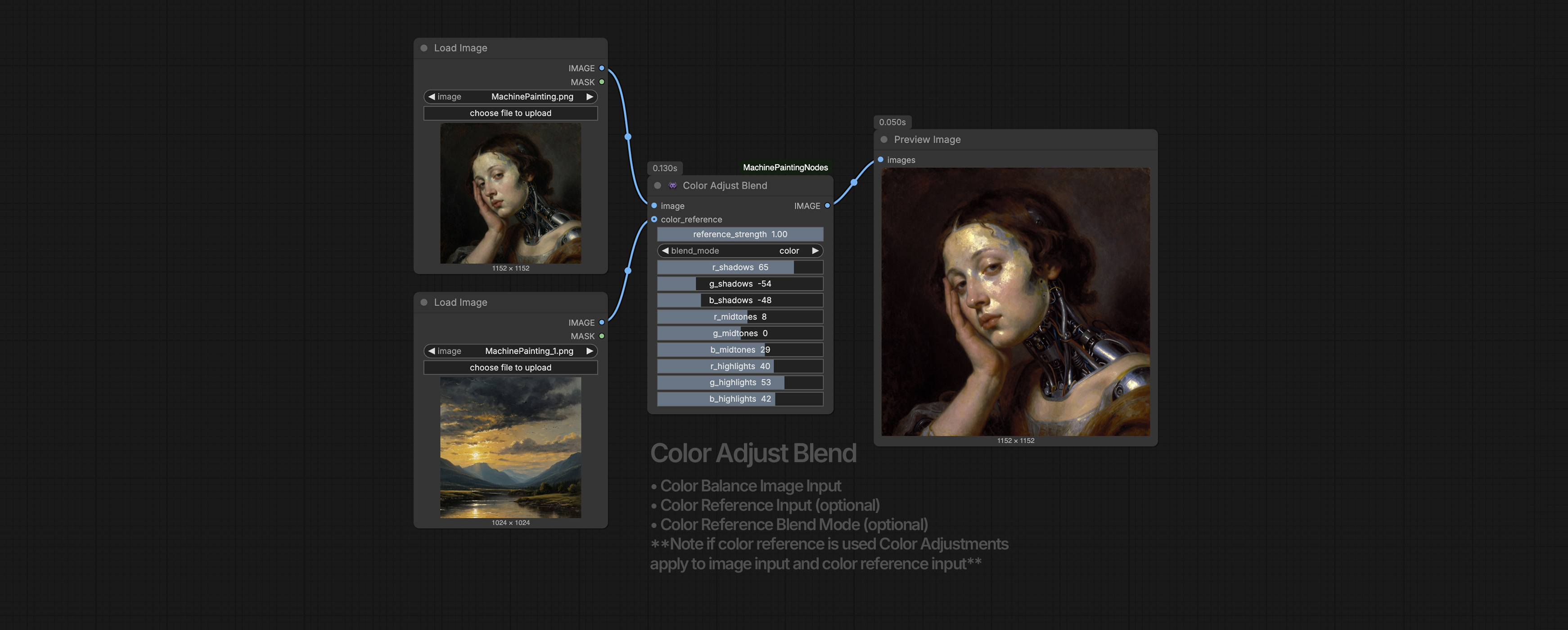

Color Adjust Blend

• Optional color reference input with LAB color matching
• Blend modes for color application
• RGB color balance with shadow/midtone/highlight zones
• Works standalone as simple color balance without reference

LUT Apply

• Supports .cube and .3dl LUT formats
• 5 bundled LUTs included (auto-installed to ComfyUI/input/luts/):
  • Cinematic_Teal_Orange
  • Warm_Tone
  • Cool_Tone
  • Vintage_Fade
  • High_Contrast
• Intensity slider to blend effect
• Add your own LUTs to ComfyUI/input/luts/

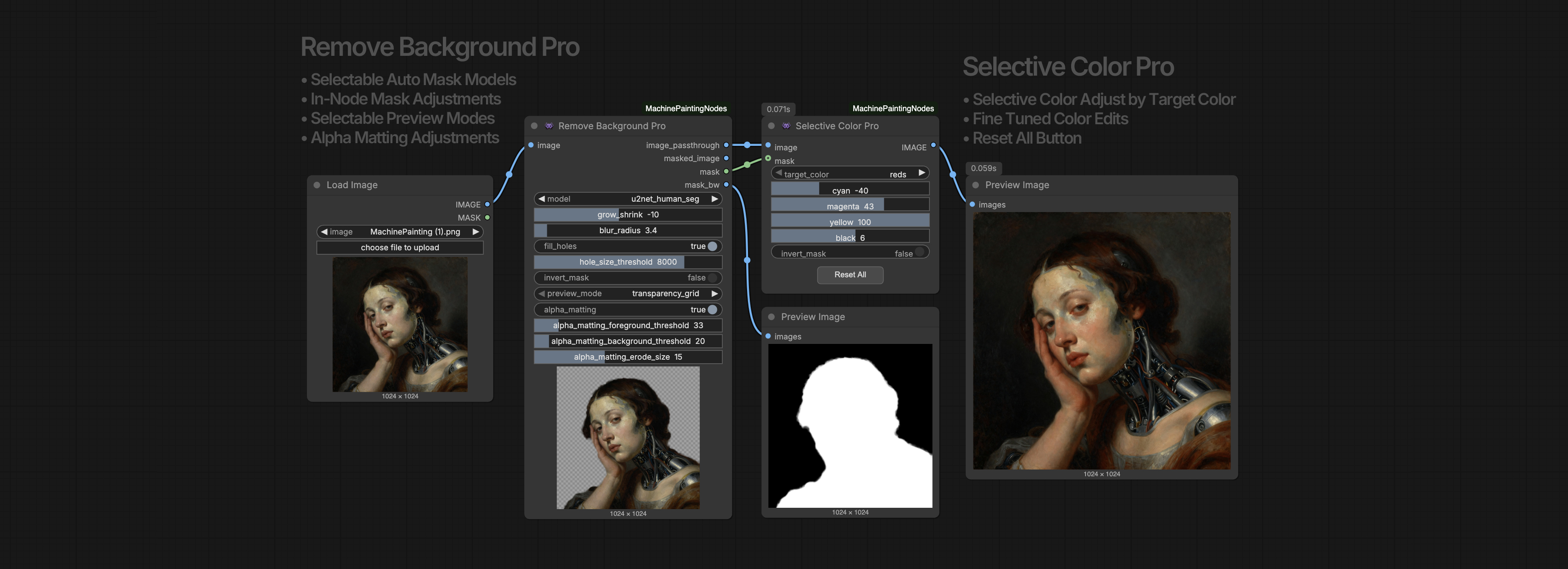

Remove Background Pro

• 8 AI models: u2net, u2netp, u2net_human_seg, u2net_cloth_seg, silueta, isnet-general-use, isnet-anime, sam
• Built-in mask refinement (grow/shrink, blur, threshold)
• Preview modes: masked, mask only, side-by-side, overlay
• Edge feathering for smooth composites

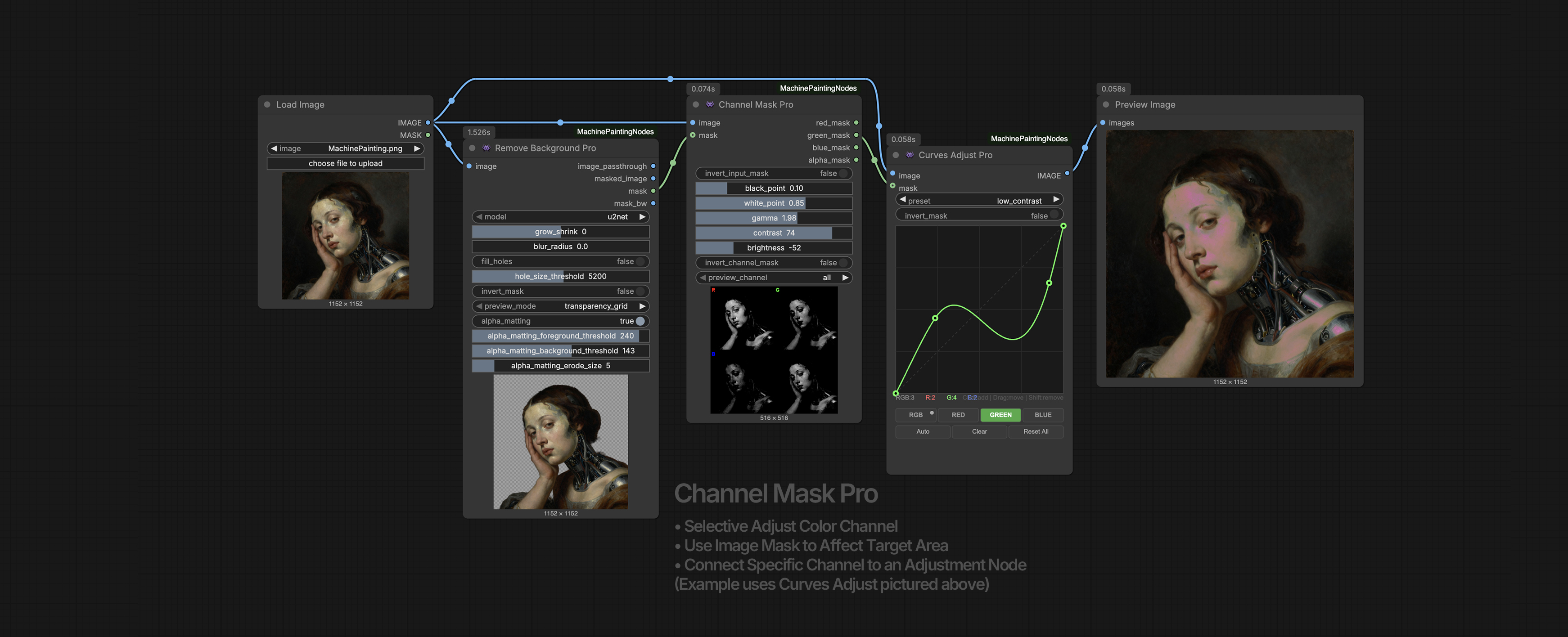

Channel Mask Pro

• Separates image into R, G, B, Alpha channel masks
• Levels adjustments (black point, white point, gamma)
• Contrast and brightness controls
• Input mask support with invert option
• B&W preview with R/G/B/L labels

Selective Color Pro

• Target specific colors: reds, yellows, greens, cyans, blues, magentas, whites, neutrals, blacks
• CMYK adjustment sliders (-100 to +100)
• Smooth RGB-based color detection for natural results
• Reset All button
• Mask support

Text Notes

• Multiline text area for workflow documentation
• Optional title field
• No inputs/outputs - purely organizational

Text String

• Simple text input with multiline support
• Outputs STRING for connecting to other nodes

Show Text

• Display text output from other nodes
• Pass-through output for chaining

Show Value

• Display any value type (float, int, string, bool) in the node
• Accepts any input type for universal debugging

Mega Slider Master Value

• Set min/max/step values in one place
• Connect to any Mega Slider node to control all its sliders
• One master can connect to multiple slider nodes
• Slider UI updates in real-time when master values change

Mega Slider X1 / X3 / X6 / X12

• 1, 3, 6, or 12 universal sliders with individual outputs
• Optional master input: connect Mega Slider Master Value to apply min/max/step to all sliders
• Per-slider overrides: Right-click node → Properties to set individual slider_N_min, slider_N_max, slider_N_step
• Output as float or integer (toggle)
• Sliders snap to step increments when properties are set

Dynamic Value Range

• Automatically cycles through a range of values on each workflow run
• Modes: increment, decrement, random
• On cycle complete: reverse direction or jump to other end
• Outputs: FLOAT, INT, and STRING versions
• Perfect for creating diversity across batch generations

Z-Image Empty Latent Image

• Pre-configured resolutions optimized for Z-Image model
• Landscape, portrait, and square options from 512x512 to 2048x2048
• Outputs LATENT, WIDTH, and HEIGHT for flexible workflow connections
• Configurable batch size

---

Changelog

v2.1.4

• Fix: Cleared registry Icon metadata (the field expects an image URL, not an emoji) so the broken-image avatar on registry.comfy.org goes away

v2.1.3

• Fix: Aligned pyproject.toml and requirements.txt to use opencv-python-headless (resolves install conflicts on headless servers)
• Fix: Replaced deprecated Image.LANCZOS with Image.Resampling.LANCZOS for Pillow 11+ compatibility
• Fix: Pinned numpy<3 to avoid breakage when NumPy 3 ships
• Update: Standardized JS frontend imports to absolute /scripts/app.js paths for forward compatibility
• Update: Added 👾 emoji icon to registry metadata

v2.1.2

• Fix: Frequency Separate — locked to correct Photoshop formula (Scale 2, Offset 128, Subtract), removed mode/epsilon options
• Fix: Frequency Combine — locked to Linear Light blend, added opacity slider, removed mode/epsilon options
• Update: Blur Pro — removed distance and iterations parameters, motion blur uses radius, box blur single pass
• Update: Inpaint Mask Pro — removed SEGS support (simplified), inpaint_mask now required

v2.1.1

• New Node: Mask Composite Pro 2X — combine 2 masks with per-mask blur, grow/shrink, opacity, screen blend, output selector, invert toggle
• New Node: Mask Composite Pro 6X — combine up to 6 masks with same features
• Update: Inpaint Mask Pro — added inpaint expand/shrink slider, multi-color overlay with per-layer display settings, removed SEGS (simplified to image + mask inputs)
• Update: Blur Pro — type-specific sliders marked as advanced for cleaner default view

v2.1.0

• New Node: Blur Pro — 5 blur types (Gaussian, Surface, Box, Median, Motion) with dynamic UI, mask support, strength blending, large radius optimization, in-node preview
• New Node: Noise Grain Pro — Film grain generator with size, sharpness, color/mono, saturation, 6 blend modes, seed, mask support
• New Node: Frequency Separate — Split image into high/low frequency layers for professional retouching
• New Node: Frequency Combine — Recombine frequency layers with Linear Light blend
• New Node: Inpaint Mask Pro — Advanced inpaint mask management with mask cropping, multi-color overlay preview
• New Node: Image <> Mask Switch — Toggle conversion between IMAGE and MASK types
• New Category: Filters (Blur Pro, Noise Grain Pro, Frequency Separate/Combine)

v2.0.5

• Fix: Updated pyproject.toml version to match release
• Fix: Corrected node count

v2.0.4

• New Node: Z-Image Empty Latent Image with optimized resolutions for Z-Image model

v2.0.3

• New Nodes: Show Value, Mega Slider Master Value, Mega Slider X1/X3/X6/X12, Dynamic Value Range
• Mega Slider Master Value: Set min/max/step for connected Mega Sliders
• Mega Sliders: Universal slider banks with optional master input and per-slider settings via right-click → Properties
• Dynamic Value Range: Auto-cycling values for batch diversity (increment/decrement/random modes)
• Show Value: Display any value type in-node for debugging

v2.0.2

• New Nodes: Text Notes, Text String, Show Text utility nodes
• Organized Categories: Nodes now grouped into subcategories (Color, Mask, Blend, Analysis, Util)

v2.0.1

Updated Node Settings, Resolved Display Issues, Fixed Several Node structures.

v2.0.0

Major Overhaul, Node Additions, and Improvements

• New Nodes: LUT Apply, Channel Mask Pro, Selective Color Pro, Boolean Invert
• Bundled LUTs: 5 color grading LUTs included with auto-install
• Curves Adjust Pro: Added mask support, improved curve display showing all channels in RGB mode
• Channel Mask Pro: Added input mask support, levels/contrast adjustments, improved B&W preview
• Unified Category: All nodes now appear under single "MachinePaintingNodes" folder
• Selective Color Pro: Added Reset All button
• Analysis Nodes: Improved auto-scaling for Histogram and Color Wheel views
• Code Cleanup: Removed deprecated nodes, standardized categories

v1.0.0

• Initial release with color adjustment, blending, and boolean utility nodes

---

License

MIT License - See LICENSE for details.

---
